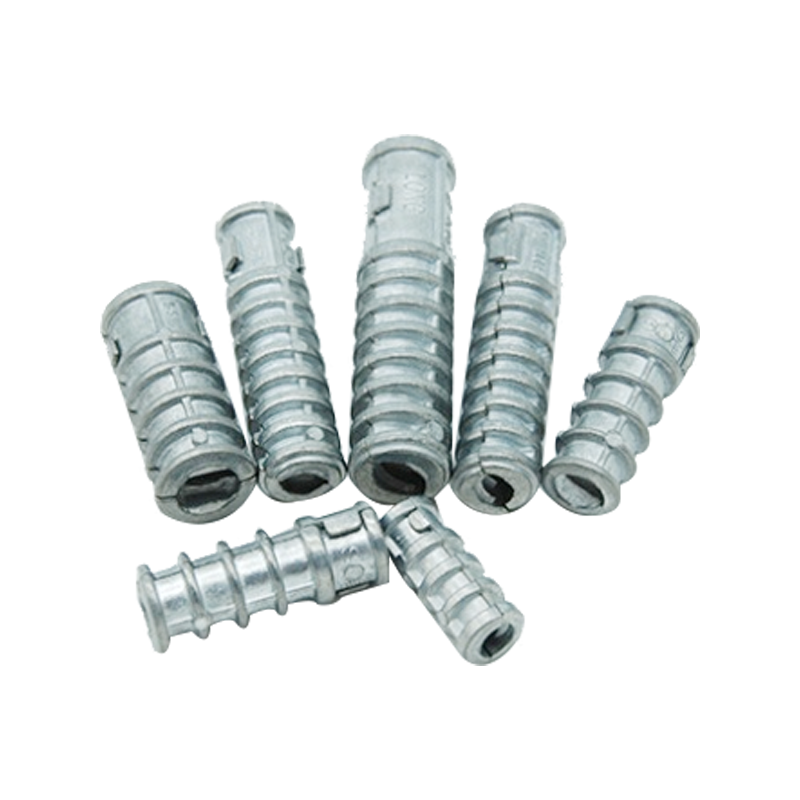

Lag Screw Shield Anchor

Home / Product / ZINC ALLOY ANCHOR / Lag Screw Shield Anchor
Lag Screw Shield Anchor

Lag Screw Shield Anchor

Product Description:
Can be used in all types masonry from concrete to brick.
Unique four-way expansion assures a tight grip even in out-of-round holes.
Short style for hard masonry, long style for soft.
Rust-proof.
The test values listed were obtained using 4000 psi concrete (no aggregate).
A safe working load should not exceed 25% of stated value.
inquiry

Installation Guideline:

Product Specifications:

231: Lag screw shield anchor,short type&long type
ltem NO. Size Dia.Φ Kgs/1,000pcs Qty.Per
box Ictn
Load (kgs)
231S 1/4" 1/2" 13.5 50/500 250
5/16" 1/2" 13.6 50/500 440
3/8" 5/8" 30.7 50/500 640
1/2" 3/4" 41.8 50/500 1240
5/8" 7/8" 58.5 25/125 1280
3/4" 1" 73.0 25/125 1640
231L 1/4" 1/2" 18.0 50/500 310
5/16" 1/2" 23.6 50/500 620
3/8" 5/8" 43.0 50/500 1100
1/2" 3/4" 64.9 50/500 1670
5/8" 7/8" 100.5 25/125 1730
3/4" 1" 111.6 25/100 2020
